field to assemble the parts,” says SAI president Kim Corcoran. SAI designs, fabricates and installs bulk materi- al-handling systems for processors of grain, flour, food and similar products. Ingredients in its fabri- cated-metal-products product mix, all cut, formed and welded in a 30,000-sq.-ft. shop in Burrton, KS, include mild- and stainless-steel sheet and plate from 18 gauge to
3 in. thick.
Variety is the Spice
“We never make the same
thing twice; we’re always chang-
ing material type and sheet thick-
ness,” says shop manager Alex
Santiago. “That was an important consideration when we went shopping for a new PAC machine. We needed features to ensure quick changeover, as we’ll go through eight to 10 setups per shift.”
Santiago points to specific machine characteristics that allow him and operator Scott Mussman to achieve just that. Most notably: the fact that the Komatsu machine mixes plasma gases at the cutting head rather than downstream at the source. That makes gas purging between setups extremely quick and efficient, so that changeovers take a mere 3 to 5 min., says Mussman.
SAI’s cutting machine offers a cutting width of 8 ft. The gantry carrying the cutting head rides on track that allows for a maximum plate length of 21 ft., with the option to add track as needed down the road. Cutting speed ranges from 30 to 200 in./min., with a rapid-traverse speed of 1000 in./min. A zoned downdraft table takes care of fume exhaust. And, in addition to the plasma torch, SWI purchased an optional oxy-propane torch attachment, for cutting thick plate beyond the PAC-torch capabilities. Changeover to oxy- fuel cutting takes just a minute or so.
Oxidation-Free Stainless Edges
Santiago also highlights the PAC machine’s unique ability to clean-cut stainless steel from 1⁄8 to 11⁄8 in. thick, leaving a cut edge face free from oxidation. This results, say Komatsu officials, from the addition of propane to the process as a shielding gas, mixed into the nitrogen carrier gas. Komatsu calls this the QuickSilver process—during cutting, the propane breaks down to provide free hydrogen that prevents oxidation of the cut edge.
“We accomplish this without having to use expensive pre-mixed plasma gas,” adds Corcoran, referring to the com- monly used hydrogen-nitrogen blends available in gas cylin- ders. Instead, SAI delivers gas to the cutting machine via liquid cylinders of nitrogen, propane and oxygen—again, mixed at the cutting head.
www.metalformingmagazine.com
“We’ll cut with nitrogen on Type 316L stainless steel,” says Santiago, “with the propane assist. On carbon steel we’ll cut with oxygen, and mix in nitrogen as material thickness increases. And for marking, we use argon to scribe an array of features—press-brake bend lines,

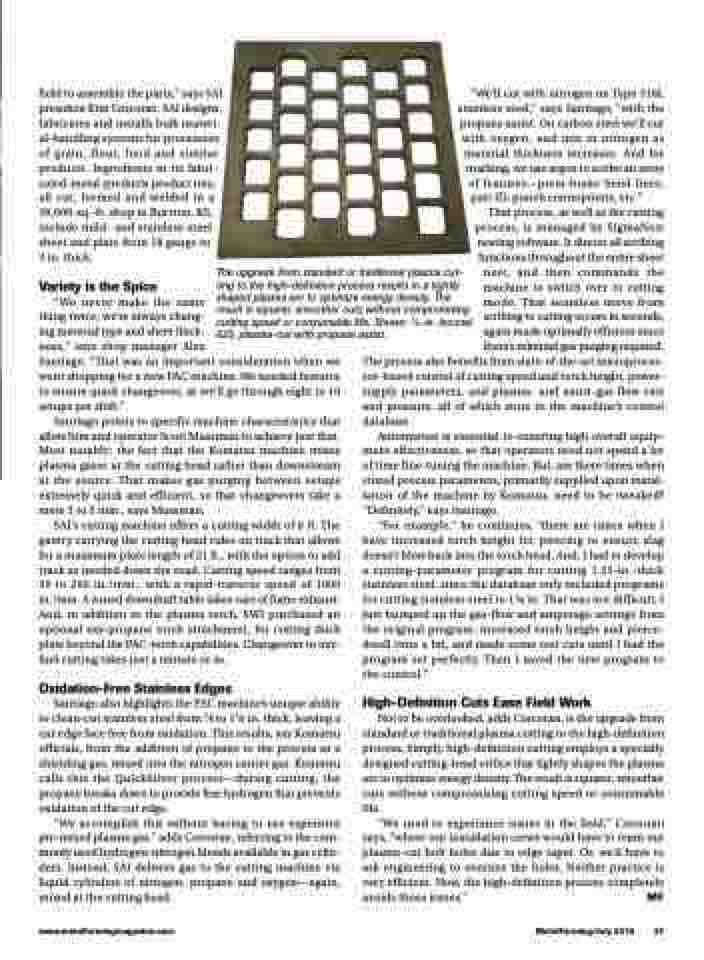

The upgrade from standard or traditional plasma cut- ting to the high-definition process results in a tightly shaped plasma arc to optimize energy density. The result is squarer, smoother cuts without compromising cutting speed or consumable life. Shown: 1⁄4-in. Inconel 625, plasma-cut with propane assist.
part ID, punch centerpoints, etc.” That process, as well as the cutting process, is managed by SigmaNest nesting software. It directs all scribing functions throughout the entire sheet nest, and then commands the machine to switch over to cutting mode. That seamless move from scribing to cutting occurs in seconds, again made optimally efficient since there’s minimal gas purging required. The process also benefits from state-of-the-art microproces- sor-based control of cutting speed and torch height, power- supply parameters, and plasma- and assist-gas flow rate and pressure, all of which store in the machine’s control
database.
Automation is essential to ensuring high overall equip-
ment effectiveness, so that operators need not spend a lot of time fine-tuning the machine. But, are there times when stored process parameters, primarily supplied upon instal- lation of the machine by Komatsu, need to be tweaked? “Definitely,” says Santiago.
“For example,” he continues, “there are times when I have increased torch height for piercing to ensure slag doesn’t blow back into the torch head. And, I had to develop a cutting-parameter program for cutting 1.25-in.-thick stainless steel, since the database only included programs for cutting stainless steel to 11⁄8 in. That was not difficult; I just bumped up the gas-flow and amperage settings from the original program, increased torch height and pierce- dwell time a bit, and made some test cuts until I had the program set perfectly. Then I saved the new program to the control.”
High-Definition Cuts Ease Field Work
Not to be overlooked, adds Corcoran, is the upgrade from standard or traditional plasma cutting to the high-definition process. Simply, high-definition cutting employs a specially designed cutting-head orifice that tightly shapes the plasma arc to optimize energy density. The result is squarer, smoother cuts without compromising cutting speed or consumable life.
“We used to experience issues in the field,” Corcoran says, “where our installation crews would have to ream out plasma-cut bolt holes due to edge taper. Or, we’d have to ask engineering to oversize the holes. Neither practice is very efficient. Now, the high-definition process completely
avoids those issues.”
