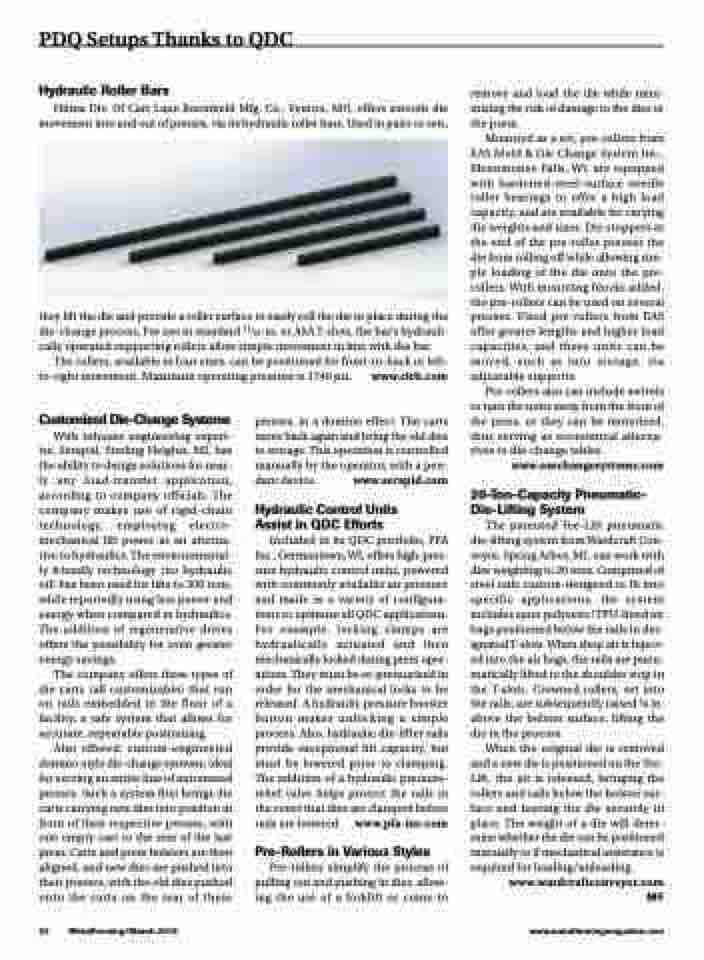

PDQ Setups Thanks to QDC
 Hydraulic Roller Bars
Hilma Div. Of Carr Lane Roemheld Mfg. Co., Fenton, MO, offers smooth die movement into and out of presses, via its hydraulic roller bars. Used in pairs or sets,
they lift the die and provide a roller surface to easily roll the die in place during the die-change process. For use in standard 11⁄16-in. or ASA T-slots, the bar’s hydrauli- cally operated supporting rollers allow simple movement in line with the bar.
The rollers, available in four sizes, can be positioned for front-to-back or left- to-right movement. Maximum operating pressure is 1740 psi. www.clrh.com
remove and load the die while mini- mizing the risk of damage to the dies or the press.
Mounted as a set, pre-rollers from EAS Mold & Die Change System Inc., Menomonee Falls, WI, are equipped with hardened-steel-surface needle roller bearings to offer a high load capacity, and are available for varying die weights and sizes. Die stoppers at the end of the pre-roller prevent the die from rolling off while allowing sim- ple loading of the die onto the pre- rollers. With mounting blocks added, the pre-rollers can be used on several presses. Fixed pre-rollers from EAS offer greater lengths and higher load capacities, and these units can be moved, such as into storage, via adjustable supports.
Pre-rollers also can include swivels to turn the units away from the front of the press, or they can be motorized, thus serving as economical alterna- tives to die-change tables.
www.easchangesystems.com
20-Ton-Capacity Pneumatic- Die-Lifting System
The patented Tee-Lift pneumatic die-lifting system from Wardcraft Con- veyor, Spring Arbor, MI, can work with dies weighting to 20 tons. Comprised of steel rails custom-designed to fit into specific applications, the system includes spun polyester/TPU-lined air bags positioned below the rails in des- ignated T-slots. When shop air is inject- ed into the air bags, the rails are pneu- matically lifted to the shoulder stop in the T-slots. Crowned rollers, set into the rails, are subsequently raised 1⁄8 in. above the bolster surface, lifting the die in the process.
When the original die is removed and a new die is positioned on the Tee- Lift, the air is released, bringing the rollers and rails below the bolster sur- face and leaving the die securely in place. The weight of a die will deter- mine whether the die can be positioned manually or if mechanical assistance is required for loading/unloading.
www.wardcraftconveyor.com
MF
 Customized Die-Change Systems
With inhouse engineering expert- ise, Serapid, Sterling Heights, MI, has the ability to design solutions for near- ly any load-transfer application, according to company officials. The company makes use of rigid-chain technology, employing electro- mechanical lift power as an alterna- tive to hydraulics. The environmental- ly friendly technology (no hydraulic oil) has been used for lifts to 300 tons, while reportedly using less power and energy when compared to hydraulics. The addition of regenerative drives offers the possibility for even greater energy savings.
The company offers three types of die carts (all customizable) that run on rails embedded in the floor of a facility, a safe system that allows for accurate, repeatable positioning.
Also offered: custom-engineered domino-style die-change systems, ideal for serving an entire line of automated presses. Such a system first brings die carts carrying new dies into position in front of their respective presses, with one empty cart to the rear of the last press. Carts and press bolsters are then aligned, and new dies are pushed into their presses, with the old dies pushed onto the carts on the rear of these
presses, in a domino effect. The carts move back again and bring the old dies to storage. This operation is controlled manually by the operator, with a pen- dant device. www.serapid.com
Hydraulic Control Units Assist in QDC Efforts
Included in its QDC portfolio, PFA Inc., Germantown, WI, offers high-pres- sure hydraulic control units, powered with commonly available air pressure and made in a variety of configura- tions to optimize all QDC applications. For example, locking clamps are hydraulically actuated and then mechanically locked during press oper- ations. They must be re-pressurized in order for the mechanical locks to be released. A hydraulic pressure booster button makes unlocking a simple process. Also, hydraulic die-lifter rails provide exceptional lift capacity, but must be lowered prior to clamping. The addition of a hydraulic pressure- relief valve helps protect the rails in the event that dies are clamped before rails are lowered. www.pfa-inc.com
Pre-Rollers in Various Styles
Pre-rollers simplify the process of pulling out and pushing in dies, allow- ing the use of a forklift or crane to
