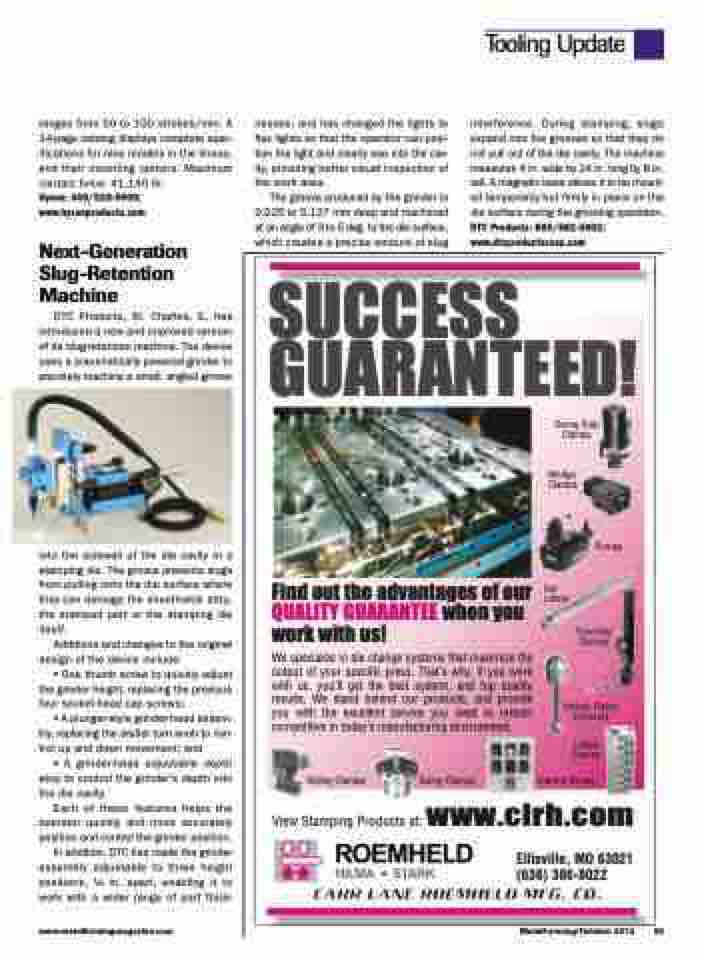

ranges from 50 to 100 strokes/min. A 14-page catalog displays complete spec- ifications for nine models in the lineup, and their mounting options. Maximum contact force: 41,140 lb.
Hyson: 440/526-5900; www.hysonproducts.com
Next-Generation
Slug-Retention
Machine
DTC Products, St. Charles, IL, has introduced a new and improved version of its slug-retention machine. The device uses a pneumatically powered grinder to precisely machine a small, angled groove
nesses; and has changed the lights to flex lights so that the operator can posi- tion the light and clearly see into the cav- ity, providing better visual inspection of the work area.
The groove produced by the grinder is 0.025 to 0.127 mm deep and machined at an angle of 3 to 5 deg. to the die surface, which creates a precise amount of slug
interference. During stamping, slugs expand into the grooves so that they do not pull out of the die cavity. The machine measures 4 in. wide by 14 in. long by 8 in. tall. A magnetic base allows it to be mount- ed temporarily but firmly in place on the die surface during the grooving operation. DTC Products: 866/682-3602; www.dtcproductscorp.com
Tooling Update
SUCCESS GUARANTEED!
Swing Sink Clamps
Wedge Clamps
Pumps
Findouttheadvantagesofour Die
QUALITY GUARANTEE when you
Lifters
Hollow Piston Cylinders
Ledge Clamps
work with us!
Traveling Clamps
We specialize in die change systems that maximize the output of your specific press. That’s why, if you work with us, you’ll get the best system, and top quality results. We stand behind our products, and provide you with the excellent service you need to remain competitive in today’s manufacturing environment.
Sliding Clamps Swing Clamps Control Panels
View Stamping Products at: www.clrh.com
Ellisville, MO 63021 (636) 386-8022
into the sidewall of the die cavity in a stamping die. The groove prevents slugs from pulling onto the die surface where they can damage the sheetmetal strip, the stamped part or the stamping die itself.
Additions and changes to the original design of the device include:
• One thumb screw to quickly adjust the grinder height, replacing the previous four socket-head cap screws;
• A plunger-style grinder-head assem- bly, replacing the earlier turn knob to con- trol up and down movement; and
• A grinder-head adjustable depth stop to control the grinder’s depth into the die cavity.
Each of these features helps the operator quickly and more accurately position and control the grinder position.
In addition, DTC has made the grinder assembly adjustable to three height positions, 1⁄2 in. apart, enabling it to work with a wider range of part thick-
