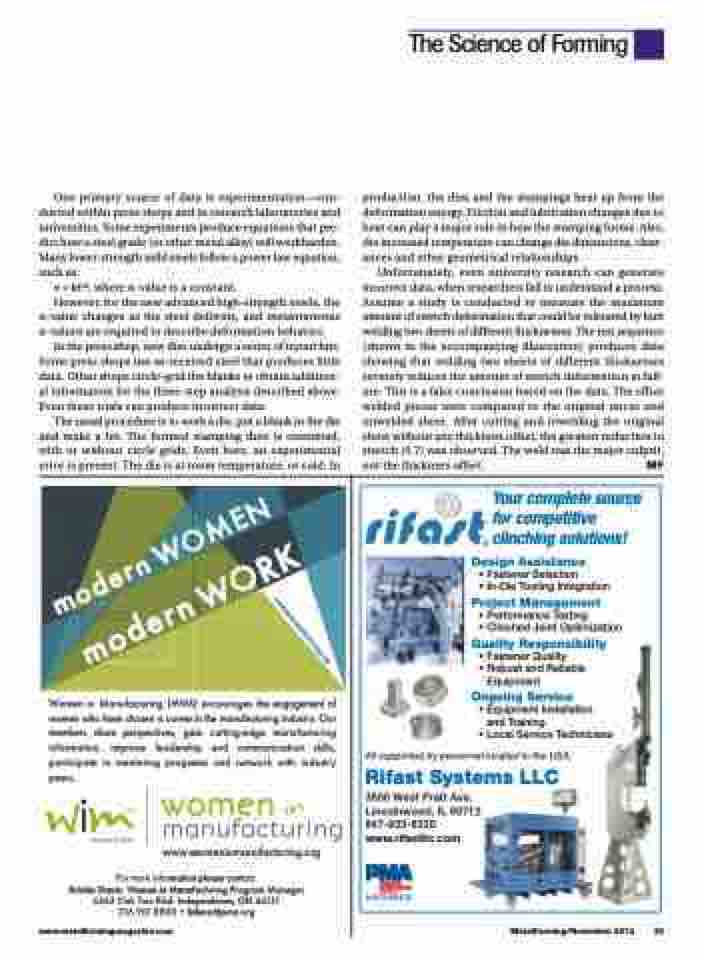

Page 35 - MetalForming November 2013

One primary source of data is experimentation—con- ducted within press shops and in research laboratories and universities. Some experiments produce equations that pre- dict how a steel grade (or other metal alloy) will workharden. Many lower-strength mild steels follow a power law equation, such as:
production, the dies and the stampings heat up from the deformation energy. Friction and lubrication changes due to heat can play a major role in how the stamping forms. Also, the increased temperature can change die dimensions, clear- ances and other geometrical relationships.
Unfortunately, even university research can generate incorrect data, when researchers fail to understand a process. Assume a study is conducted to measure the maximum amount of stretch deformation that could be tolerated by butt welding two sheets of different thicknesses. The test sequence (shown in the accompanying illustration) produces data showing that welding two sheets of different thicknesses severely reduces the amount of stretch deformation at fail- ure. This is a false conclusion based on the data. The offset welded pieces were compared to the original uncut and unwelded sheet. After cutting and rewelding the original sheet without any thickness offset, the greatest reduction in stretch (0.7) was observed. The weld was the major culprit, not the thickness offset. MF
Your complete source
for competitive
® clinching solutions!
Design Assistance
• Fastener Selection
• In-Die Tooling Integration
Project Management
• Performance Testing
• Clinched Joint Optimization
Quality Responsibility
• Fastener Quality
• Robust and Reliable
Equipment
Ongoing Service
• Equipment Installation and Training
• Local Service Technicians
All supported by personnel located in the USA.
Rifast Systems LLC
3550 West Pratt Ave. Lincolnwood, IL 60712 847-933-8330 www.rifastllc.com
σ = k€n, where n-value is a constant.
However, for the new advanced high-strength steels, the n-value changes as the steel deforms, and instantaneous n-values are required to describe deformation behavior.
In the press shop, new dies undergo a series of tryout hits. Some press shops use as-received steel that produces little data. Other shops circle-grid the blanks to obtain addition- al information for the three-step analysis described above. Even these trials can produce incorrect data.
The usual procedure is to work a die, put a blank in the die and make a hit. The formed stamping then is examined, with or without circle grids. Even here, an experimental error is present. The die is at room temperature, or cold. In
Women iin Manufacturing (WiM) encourages the engagement of women who have chosen a career in the manufacturing industry. Our members share perspectives, gain cutting-edge manufacturing information, improve leadership and communication skills, participate in mentoring programs and network with industry peers.
Powered by PMA
www.womeninmanufacturing.org
For more information please contact:
Kristin Davis: Women in Manufacturing Program Manager 6363 Oak Tree Blvd. Independence, OH 44131 216.901.8800 • kdavis@pma.org
www.metalformingmagazine.com
MetalForming/November 2013 33
The Science of Forming
