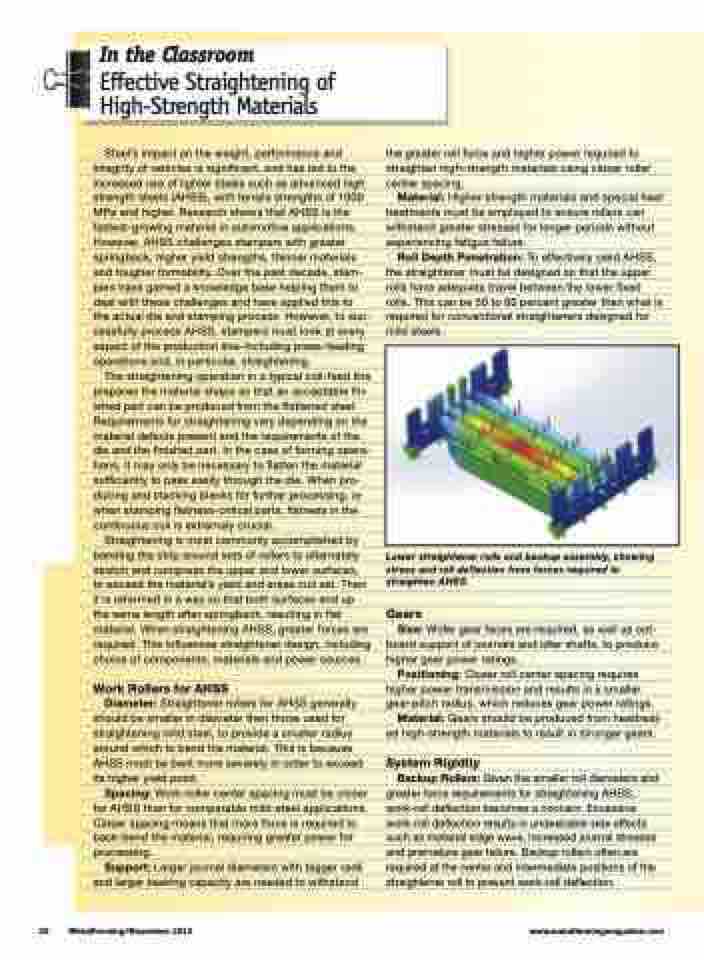

In the Classroom
Effective Straightening of High-Strength Materials
Steel’s impact on the weight, performance and integrity of vehicles is significant, and has led to the increased use of lighter steels such as advanced high strength steels (AHSS), with tensile strengths of 1000 MPa and higher. Research shows that AHSS is the fastest-growing material in automotive applications. However, AHSS challenges stampers with greater springback, higher yield strengths, thinner materials and tougher formability. Over the past decade, stam- pers have gained a knowledge base helping them to deal with these challenges and have applied this to the actual die and stamping process. However, to suc- cessfully process AHSS, stampers must look at every aspect of the production line–including press-feeding operations and, in particular, straightening.
The straightening operation in a typical coil-feed line prepares the material shape so that an acceptable fin- ished part can be produced from the flattened steel. Requirements for straightening vary depending on the material defects present and the requirements of the die and the finished part. In the case of forming opera- tions, it may only be necessary to flatten the material sufficiently to pass easily through the die. When pro- ducing and stacking blanks for further processing, or when stamping flatness-critical parts, flatness in the continuous coil is extremely crucial.
Straightening is most commonly accomplished by bending the strip around sets of rollers to alternately stretch and compress the upper and lower surfaces, to exceed the material’s yield and erase coil set. Then it is reformed in a way so that both surfaces end up the same length after springback, resulting in flat material. When straightening AHSS, greater forces are required. This influences straightener design, including choice of components, materials and power sources.
Work Rollers for AHSS
Diameter: Straightener rollers for AHSS generally
should be smaller in diameter then those used for straightening mild steel, to provide a smaller radius around which to bend the material. This is because AHSS must be bent more severely in order to exceed its higher yield point.
Spacing: Work-roller center spacing must be closer for AHSS than for comparable mild-steel applications. Closer spacing means that more force is required to back-bend the material, requiring greater power for processing.
Support: Larger journal diameters with bigger radii and larger bearing capacity are needed to withstand
the greater roll force and higher power required to straighten high-strength materials using closer roller center spacing.
Material: Higher-strength materials and special heat treatments must be employed to ensure rollers can withstand greater stresses for longer periods without experiencing fatigue failure.
Roll Depth Penetration: To effectively yield AHSS, the straightener must be designed so that the upper rolls have adequate travel between the lower fixed rolls. This can be 50 to 60 percent greater than what is required for conventional straighteners designed for mild steels.
Lower straightener rolls and backup assembly, showing stress and roll deflection from forces required to straighten AHSS.
Gears
Size: Wider gear faces are required, as well as out-
board support of journals and idler shafts, to produce higher gear power ratings.
Positioning: Closer roll center spacing requires higher power transmission and results in a smaller gear-pitch radius, which reduces gear power ratings.
Material: Gears should be produced from heattreat- ed high-strength materials to result in stronger gears.
System Rigidity
Backup Rollers: Given the smaller roll diameters and
greater force requirements for straightening AHSS, work-roll deflection becomes a concern. Excessive work-roll deflection results in undesirable side effects such as material edge wave, increased journal stresses and premature gear failure. Backup rollers often are required at the center and intermediate positions of the straightener roll to prevent work-roll deflection.
