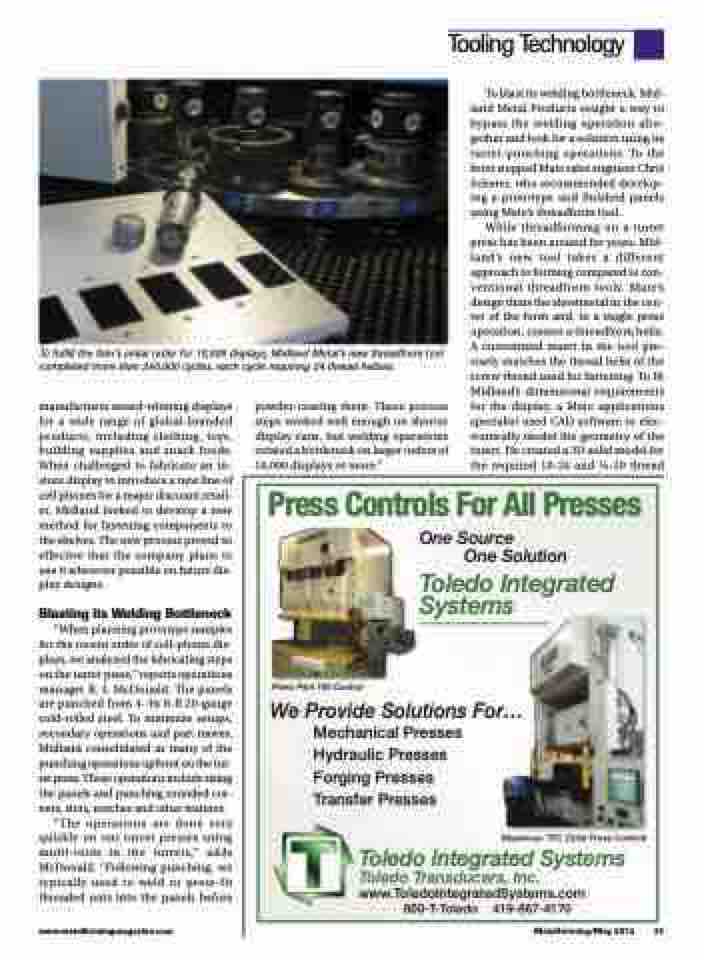

To fulfill the firm’s initial order for 10,000 displays, Midland Metal’s new threadform tool completed more than 240,000 cycles, each cycle requiring 24 thread helixes.
To blast its welding bottleneck, Mid- land Metal Products sought a way to bypass the welding operation alto- gether and look for a solution using its turret-punching operations. To the front stepped Mate sales engineer Chris Scherer, who recommended develop- ing a prototype and finished panels using Mate’s threadform tool.
While threadforming on a turret press has been around for years, Mid- land’s new tool takes a different approach to forming compared to con- ventional threadform tools. Mate’s design thins the sheetmetal in the cen- ter of the form and, in a single press operation, creates a threadform helix. A customized insert in the tool pre- cisely matches the thread helix of the screw thread used for fastening. To fit Midland’s dimensional requirements for the display, a Mate applications specialist used CAD software to elec- tronically model the geometry of the insert. He created a 3D solid model for the required 10-24 and 1⁄4-20 thread
manufactures award-winning displays for a wide range of global-branded products, including clothing, toys, building supplies and snack foods. When challenged to fabricate an in- store display to introduce a new line of cell phones for a major discount retail- er, Midland looked to develop a new method for fastening components to the shelves. The new process proved so effective that the company plans to use it wherever possible on future dis- play designs.
Blasting its Welding Bottleneck
“When planning prototype samples for the recent order of cell-phone dis- plays, we analyzed the fabricating steps on the turret press,” reports operations manager B. J. McDonald. The panels are punched from 4- by 8-ft 20-gauge cold-rolled steel. To minimize setups, secondary operations and part moves, Midland consolidated as many of the punching operations upfront on the tur- ret press. Those operations include sizing the panels and punching rounded cor- ners, slots, notches and other features.
“The operations are done very quickly on our turret presses using multi-tools in the turrets,” adds McDonald. “Following punching, we typically used to weld or press-fit threaded nuts into the panels before
powder-coating them. These process steps worked well enough on shorter display runs, but welding operations created a bottleneck on larger orders of 10,000 displays or more.”
