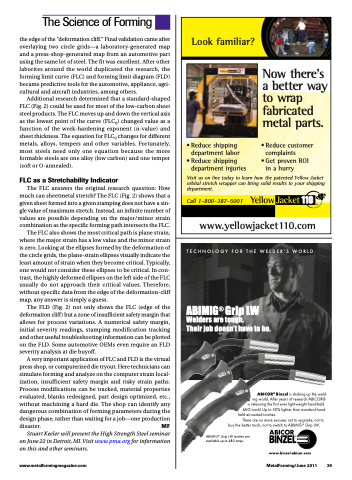

The Science of Forming
the edge of the “deformation cliff.” Final validation came after overlaying two circle grids—a laboratory-generated map and a press-shop-generated map from an automotive part using the same lot of steel. The fit was excellent. After other laborites around the world duplicated the research, the forming limit curve (FLC) and forming limit diagram (FLD) became predictive tools for the automotive, appliance, agri- cultural and aircraft industries, among others.
Additional research determined that a standard-shaped FLC (Fig. 2) could be used for most of the low-carbon sheet steel products. The FLC moves up and down the vertical axis as the lowest point of the curve (FLC0) changed value as a function of the work-hardening exponent (n-value) and sheet thickness. The equation for FLC0 changes for different metals, alloys, tempers and other variables. Fortunately, most steels need only one equation because the more formable steels are one alloy (low carbon) and one temper (soft or O-annealed).
FLC as a Stretchability Indicator
The FLC answers the original research question: How much can sheetmetal stretch? The FLC (Fig. 2) shows that a given sheet formed into a given stamping does not have a sin- gle value of maximum stretch. Instead, an infinite number of values are possible depending on the major/minor strain combination as the specific forming path intersects the FLC.
The FLC also shows the most critical path is plane strain, where the major strain has a low value and the minor strain is zero. Looking at the ellipses formed by the deformation of the circle grids, the plane-strain ellipses visually indicate the least amount of strain when they become critical. Typically, one would not consider these ellipses to be critical. In con- trast, the highly deformed ellipses on the left side of the FLC usually do not approach their critical values. Therefore, without specific data from the edge of the deformation-cliff map, any answer is simply a guess.
The FLD (Fig. 2) not only shows the FLC (edge of the deformation cliff ) but a zone of insufficient safety margin that allows for process variations. A numerical safety margin, initial severity readings, stamping modification tracking and other useful troubleshooting information can be plotted on the FLD. Some automotive OEMs even require an FLD severity analysis at die buyoff.
A very important application of FLC and FLD is the virtual press shop, or computerized die tryout. Here technicians can simulate forming and analyze on the computer strain local- ization, insufficient safety margin and risky strain paths. Process modifications can be tracked, material properties evaluated, blanks redesigned, part design optimized, etc., without machining a hard die. The shop can identify any dangerous combination of forming parameters during the design phase, rather than waiting for a job—one production disaster. MF
Stuart Keeler will present the High Strength Steel seminar on June 22 in Detroit, MI. Visit www.pma.org for information on this and other seminars.
