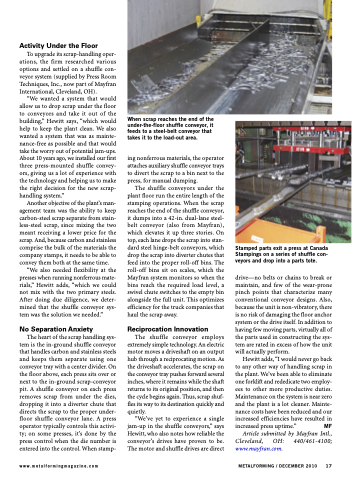

Activity Under the Floor
To upgrade its scrap-handling oper- ations, the firm researched various options and settled on a shuffle con- veyor system (supplied by Press Room Techniques, Inc., now part of Mayfran International, Cleveland, OH).
“We wanted a system that would allow us to drop scrap under the floor to conveyors and take it out of the building,” Hewitt says, “which would help to keep the plant clean. We also wanted a system that was as mainte- nance-free as possible and that would take the worry out of potential jam-ups. About 10 years ago, we installed our first three press-mounted shuffle convey- ors, giving us a lot of experience with the technology and helping us to make the right decision for the new scrap- handling system.”
Another objective of the plant’s man- agement team was the ability to keep carbon-steel scrap separate from stain- less-steel scrap, since mixing the two meant receiving a lower price for the scrap. And, because carbon and stainless comprise the bulk of the materials the company stamps, it needs to be able to convey them both at the same time.
“We also needed flexibility at the presses when running nonferrous mate- rials,” Hewitt adds, “which we could not mix with the two primary steels. After doing due diligence, we deter- mined that the shuffle conveyor sys- tem was the solution we needed.”
No Separation Anxiety
The heart of the scrap handling sys- tem is the in-ground shuffle conveyor that handles carbon and stainless steels and keeps them separate using one conveyor tray with a center divider. On the floor above, each press sits over or next to the in-ground scrap-conveyor pit. A shuffle conveyor on each press removes scrap from under the dies, dropping it into a diverter chute that directs the scrap to the proper under- floor shuffle conveyor lane. A press operator typically controls this activi- ty; on some presses, it’s done by the press control when the die number is entered into the control. When stamp-
When scrap reaches the end of the under-the-floor shuffle conveyor, it feeds to a steel-belt conveyor that takes it to the load-out area.
ing nonferrous materials, the operator attaches auxiliary shuffle conveyor trays to divert the scrap to a bin next to the press, for manual dumping.
The shuffle conveyors under the plant floor run the entire length of the stamping operations. When the scrap reaches the end of the shuffle conveyor, it dumps into a 42-in. dual-lane steel- belt conveyor (also from Mayfran), which elevates it up three stories. On top, each lane drops the scrap into stan- dard steel hinge-belt conveyors, which drop the scrap into diverter chutes that feed into the proper roll-off bins. The roll-off bins sit on scales, which the Mayfran system monitors so when the bins reach the required load level, a swivel chute switches to the empty bin alongside the full unit. This optimizes efficiency for the truck companies that haul the scrap away.
Reciprocation Innovation
The shuffle conveyor employs extremely simple technology. An electric motor moves a driveshaft on an output hub through a reciprocating motion. As the driveshaft accelerates, the scrap on the conveyor tray pushes forward several inches, where it remains while the shaft returns to its original position, and then the cycle begins again. Thus, scrap shuf- fles its way to its destination quickly and quietly.
“We’ve yet to experience a single jam-up in the shuffle conveyors,” says Hewitt, who also notes how reliable the conveyor’s drives have proven to be. The motor and shuffle drives are direct
Stamped parts exit a press at Canada Stampings on a series of shuffle con- veyors and drop into a parts tote.
drive—no belts or chains to break or maintain, and few of the wear-prone pinch points that characterize many conventional conveyor designs. Also, because the unit is non-vibratory, there is no risk of damaging the floor anchor system or the drive itself. In addition to having few moving parts, virtually all of the parts used in constructing the sys- tem are rated in excess of how the unit will actually perform.
Hewitt adds, “I would never go back to any other way of handling scrap in the plant. We’ve been able to eliminate one forklift and rededicate two employ- ees to other more productive duties. Maintenance on the system is near zero and the plant is a lot cleaner. Mainte- nance costs have been reduced and our increased efficiencies have resulted in increased press uptime.” MF
Article submitted by Mayfran Intl., Cleveland, OH: 440/461-4100; www.mayfran.com.
