Precision Blanking Line
Three Times Faster, Quicker to Set Up
A new blanking line keeps eight stamping presses flush with material, turning out anti-slip safety grating for the railroad, construction and other industries.
BY BRAD F. KUVIN, EDITOR
The U.S. freight-car industry has felt the economic meltdown as much or more than any other industry, watching new-car orders fall from 60,000 in 2008 to an estimated 18,000 in 2009. That trend has supplier Morton Manufacturing Co., Libertyville, IL, a provider of anti-slip walking surfaces to railroad-car builders since 1903, eyeing the freight-car repair market for oppor- tunities to provide its manufactured products—running boards, brake steps, end platforms and intermodal plat- forms. The company, which occupies a 200,000-sq.-ft. facility that takes in two to three truckloads of steel per day, processes coils as wide as 48 in. that weigh as much as 30,000 lb. Most of what Morton processes is 11- to 14- gauge hot-rolled and pre-galvanized steel; it also yields 500,000 lb. of alu- minum stock each year, and a bit of stainless steel as well.
The overwhelming majority (80 per- cent) of the material processed at Mor- ton runs through its seven blank-fed stamping presses, rated 400 to 800-ton capacity; one Minster press processes coil stock. The newest addition to the firm’s pressroom is an 800-ton Clearing added in 2007. Additional value-added processing of the firm’s safety grating products—including products for the industrial market such as work plat-

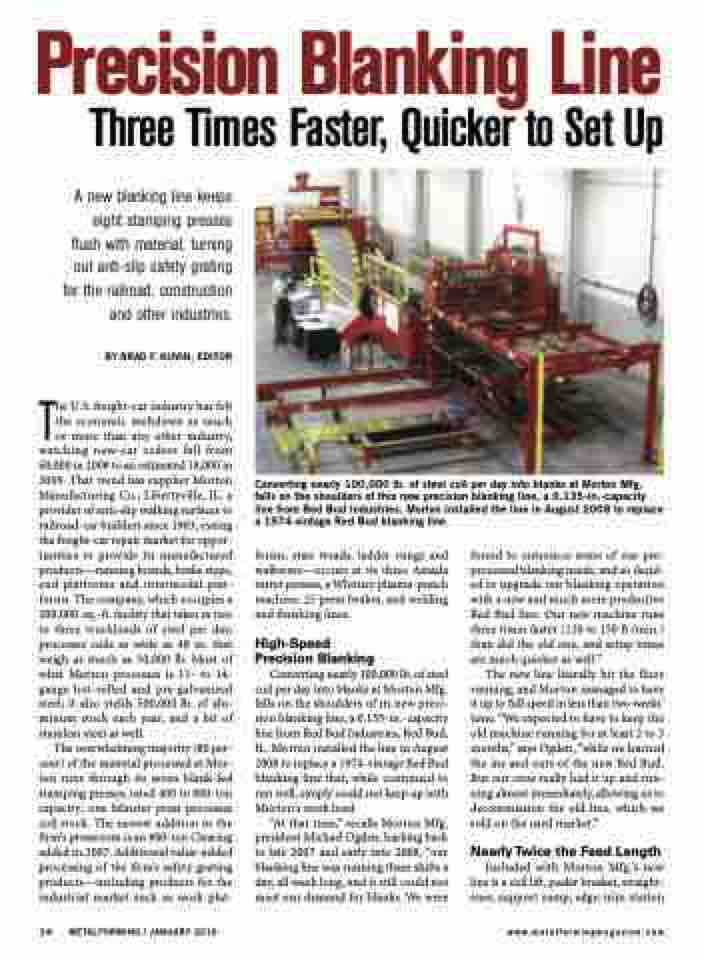

Converting nearly 100,000 lb. of steel coil per day into blanks at Morton Mfg. falls on the shoulders of this new precision blanking line, a 0.135-in.-capacity line from Red Bud Industries. Morton installed the line in August 2008 to replace a 1974-vintage Red Bud blanking line.
14 METALFORMING / JANUARY 2010
www.metalformingmagazine.com
forms, stair treads, ladder rungs and walkways—occurs at its three Amada turret presses, a Whitney plasma-punch machine, 25 press brakes, and welding and finishing lines.
High-Speed Precision Blanking
Converting nearly 100,000 lb. of steel coil per day into blanks at Morton Mfg. falls on the shoulders of its new preci- sion blanking line, a 0.135-in.-capacity line from Red Bud Industries, Red Bud, IL. Morton installed the line in August 2008 to replace a 1974-vintage Red Bud blanking line that, while continued to run well, simply could not keep up with Morton’s work load.
“At that time,” recalls Morton Mfg. president Michael Ogden, harking back to late 2007 and early into 2008, “our blanking line was running three shifts a day, all week long, and it still could not meet our demand for blanks. We were
forced to outsource some of our pre- processed blanking needs, and so decid- ed to upgrade our blanking operation with a new and much more productive Red Bud line. Our new machine runs three times faster (120 to 150 ft./min.) than did the old one, and setup times are much quicker as well.”
The new line literally hit the floor running, and Morton managed to have it up to full speed in less than two weeks’ time. “We expected to have to keep the old machine running for at least 2 to 3 months,” says Ogden, “while we learned the ins and outs of the new Red Bud. But our crew really had it up and run- ning almost immediately, allowing us to decommission the old line, which we sold on the used market.”
Nearly Twice the Feed Length
Included with Morton Mfg.’s new line is a coil lift, peeler breaker, straight- ener, support ramp, edge-trim station
