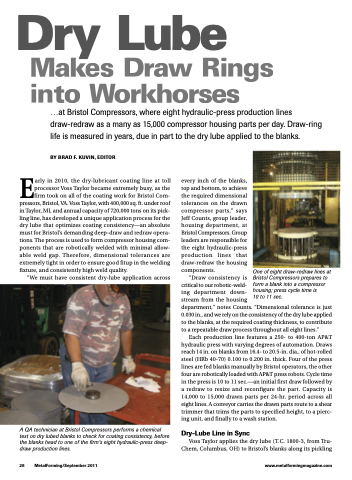

Page 30 - MetalForming September 2011

Dry Lube
...at Bristol Compressors, where eight hydraulic-press production lines draw-redraw as a many as 15,000 compressor housing parts per day. Draw-ring life is measured in years, due in part to the dry lube applied to the blanks.
BY BRAD F. KUVIN, EDITOR
Early in 2010, the dry-lubricant coating line at toll processor Voss Taylor became extremely busy, as the firm took on all of the coating work for Bristol Com- pressors, Bristol, VA. Voss Taylor, with 400,000 sq. ft. under roof in Taylor, MI, and annual capacity of 720,000 tons on its pick- ling line, has developed a unique application process for the dry lube that optimizes coating consistency—an absolute must for Bristol’s demanding deep-draw and redraw opera- tions. The process is used to form compressor housing com- ponents that are robotically welded with minimal allow- able weld gap. Therefore, dimensional tolerances are extremely tight in order to ensure good fitup in the welding fixture, and consistently high weld quality.
“We must have consistent dry-lube application across
every inch of the blanks, top and bottom, to achieve the required dimensional tolerances on the drawn compressor parts,” says Jeff Counts, group leader, housing department, at Bristol Compressors. Group leaders are responsible for the eight hydraulic-press production lines that draw-redraw the housing components.
One of eight draw-redraw lines at Bristol Compressors prepares to form a blank into a compressor housing; press cycle time is
A QA technician at Bristol Compressors performs a chemical test on dry lubed blanks to check for coating consistency, before the blanks head to one of the firm’s eight hydraulic-press deep- draw production lines.
28 MetalForming/September 2011
www.metalformingmagazine.com
“Draw consistency is
critical to our robotic-weld-
ing department down-
stream from the housing
department,” notes Counts. “Dimensional tolerance is just 0.030 in., and we rely on the consistency of the dry lube applied to the blanks, at the required coating thickness, to contribute to a repeatable draw process throughout all eight lines.”
Each production line features a 250- to 400-ton AP&T hydraulic press with varying degrees of automation. Draws reach 14 in. on blanks from 16.4- to 20.5-in. dia., of hot-rolled steel (HRb 40-70) 0.100 to 0.200 in. thick. Four of the press lines are fed blanks manually by Bristol operators, the other four are robotically loaded with AP&T press robots. Cycle time in the press is 10 to 11 sec.—an initial first draw followed by a redraw to resize and reconfigure the part. Capacity is 14,000 to 15,000 drawn parts per 24-hr. period across all eight lines. A conveyor carries the drawn parts route to a shear trimmer that trims the parts to specified height, to a pierc- ing unit, and finally to a wash station.
Dry-Lube Line in Sync
Voss Taylor applies the dry lube (T.C. 1800-3, from Tru- Chem, Columbus, OH) to Bristol’s blanks along its pickling
10 to 11 sec.
